Farmduino 1.5V – Communication Issues, Firmware Flashing Failure, and Arduino IDE Upload Problem

[cumaali]

Hello everyone,

I hope you are all doing well. I am having several problems with a Farmduino 1.5V board that I produced using the PCB documents shared earlier. I would be very grateful if anyone could help or share their experience.

• I flashed the hex file after modifying the definition to identify the board as Farmduino V30.
• I programmed the 16U2 following this forum guide:
  Farmduino 2.0 bringup - #6 by jan.janson
• Then I programmed the STM32 using the 1.0.1 release from GitHub.
  After completing the steps above, I started receiving continuous messages like the ones below:14:56:15.978 → R81 XA1 XB1 YA1 YB1 ZA1 ZB1 Q0
  14:56:15.978 → R88 Q0
  14:56:16.491 → R00 Q0
  14:56:16.491 → R82 X0.00 Y0.00 Z0.00 Q0
  14:56:16.491 → R84 X0.00 Y0.00 Z0.00 Q0
  14:56:16.491 → R85 X-1 Y-1 Z-1 Q0

I connected an RPi4 running Genesis 1.8 OS to the Farmduino.

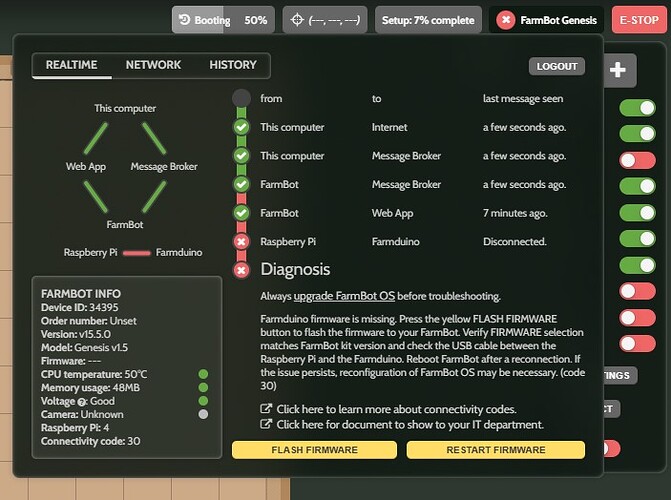

However, on the web app, the Raspberry Pi → Farmduino connection always appears disconnected.

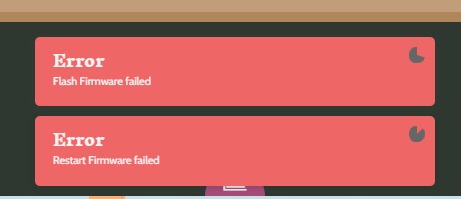

When I try to flash the firmware from the FarmBot web interface, it fails every time.
I also tried to upload the Blink example to the Arduino Mega (via the 16U2 USB interface), but this was also unsuccessful.

[cumaali]

Hey again, I fixed the problem with properly programming 16u2 fuses. And, Famduino connected to the Rpi4 successfully. HOWEVER, although peripherals connect properly, the motor drivers are not working properly. When I send the motor command on the Web to the Farmbot, the motor LED is not lighting and the motor does not run. Also, there is no activity 2 between 2560 and TI motor driver.

[jsimmonds]

@cumaali

the motor LED is not lighting and the motor does not run

The motor LED is ON for each Step pulse. What does the serial conversation look like ?
